Start Guide for UxMIDI Tools Software by CME

22  comments

UxMIDI Tools software for U2MIDI Pro and U6MIDI Pro

Unleash Your MIDI Power with UxMIDI Tools

The Guide for CME's U2MIDI Pro and U6MIDI Pro and future CME USB MIDI hardware devices

At CME, we understand that the world of MIDI interfaces is all about control, creativity, and precision. To help you harness the true potential of your U2MIDI Pro, U6MIDI Pro and future CME USB MIDI hardware devices, we have developed the UxMIDI Tools software.. This innovative tool opens a world of possibilities, and in this guide, we'll walk you through how to maximize your MIDI experience.

  1. Go Advanced with UxMIDI by CME

  2. Installation: software + firmware

  3. MIDI Filter: Block MIDI messages

    1. Scenario

    2. Setting up your MIDI Filter

  4. MIDI Router: Create MIDI Thru, Merge, and More

    1. MIDI Thru

      1. Creating a MIDI Thru box with the U6MIDI Pro

    2. MIDI Merge

      1. Creating a MIDI Merge box with the U6MIDI Pro

    3. Customize your MIDI routing scenario with U6MIDI Pro

    4. Smart USB MIDI cabling with U2MIDI Pro

  5. MIDI Mapper: Transform your controls into expressive tools

    1. Getting started with the UxMIDI Mapper

    2. Understanding MIDI Mapper

    3. Understanding the Config section

      1. Table 1: Source MIDI messages

      2. Table 2: Value 1 and 2

  6. View Full Settings

  7. Conclusion

Go Advanced with UxMIDI by CME

Picture yourself in your home studio, surrounded by your keyboard controller, synthesizer, drum machine, and DAW-equipped computer. With CME's USB MIDI hardware devices and the versatile UxMIDI Tools software, you have the power to unlock a whole new level of creativity.

Your passion is crafting intricate drum patterns, and here's where CME's USB MIDI hardware devices shine. You selectively filter out specific MIDI channels from your keyboard controller, like all channels except channel 10 for your percussion sounds, and send that channel exclusively to your drum machine via your routing matrix.

No more accidental triggers disrupting your flow. The MIDI filter settings act as your creative bouncer, ensuring that only the desired MIDI data gets through.

Besides this CME's USB MIDI hardware devices allow you to customize your controller's modulation wheel and pitch bend to control precise parameters on your synthesizer. This is where your sound truly comes alive, offering you the power to craft unique and expressive musical landscapes.

With your CME USB MIDI hardware devices and UxMIDI Tools, your music production studio becomes a realm of limitless possibilities. Your creative vision is magnified with precise control, providing you the tools to craft music that's distinctive, emotive, and uniquely your own.

Installation: software + firmware

Before we dive into the exciting features of UxMIDI Tools, it's important to set up your system correctly.

Start by downloading the latest version of the UxMIDI Tools software. It's compatible with both [macOS] and [Windows].

After you install the software, launch it and connect your CME USB MIDI hardware device via your operating system's USB port.

If the firmware of your CME USB MIDI hardware device is up-to-date, the default window will open for further configuration. If the firmware is not up-to-date, you will see an update pop-up window.

Always make sure you are using the latest firmware version.

CME MIDI update firmware uxmidi

CME UxMIDI Tools: Firmware Update

MIDI Filter: Block MIDI messages

MIDI filtering is the cornerstone of customization. It allows you to shape your MIDI data to meet your unique requirements and reduces unpredictable behavior of your setup.

The MIDI filter of the UxMIDI Tools software allows you to selectively block specific types of MIDI messages from passing through your MIDI interface. It acts as a gatekeeper, ensuring that only the desired MIDI data is transmitted, which is essential for maintaining precision and reducing unwanted noise in a MIDI setup.

Per firmware v3.6, you can apply the filter to both the inputs and outputs of your CME USB MIDI hardware device.

Scenario

In practice, MIDI filtering with CME's UxMIDI Tools software offers a multitude of applications. For instance, imagine you're a live performer who wants to use a MIDI foot controller to switch between various guitar effects pedals. With MIDI filtering, you can configure your CME USB MIDI interface to allow only specific MIDI control change (CC) messages, corresponding to each effect pedal, to reach your guitar effects processor.

This means that as you tap a button on your foot controller, only the relevant MIDI messages are sent, seamlessly activating or deactivating your desired effects without any unintentional changes. MIDI filtering is your ticket to precision and control, ensuring your live performance runs seamlessly while avoiding any unwanted surprises.

Setting up your MIDI Filter

  1. Launch UxMIDI Tools and connect your CME USB MIDI hardware device.
  2. Access the MIDI Filter section by clicking the tab on the top of the window
  3. Select via the dropdown menu to which in- or output you want the filter to apply
  4. Specify which MIDI channels should be blocked (filtered out).
    Note: When a MIDI channel is selected, all messages of this MIDI channel will be filtered out.
  5. Select which types of MIDI messages you want to block (filter out).
    Note: When certain message types are selected, those messages type will be filtered out in all MIDI channels: Note on, Note off, PC, CC, Sysex, Key pressure, Pitch bend, Channel pressure
  6. All settings are automatically stored on your CME USB MIDI hardware device.

This feature is essential for fine-tuning your MIDI setup for precision and control.
Using UxMIDI Tools, you can customize your MIDI data with ease, and unlock new dimensions of control and creativity.

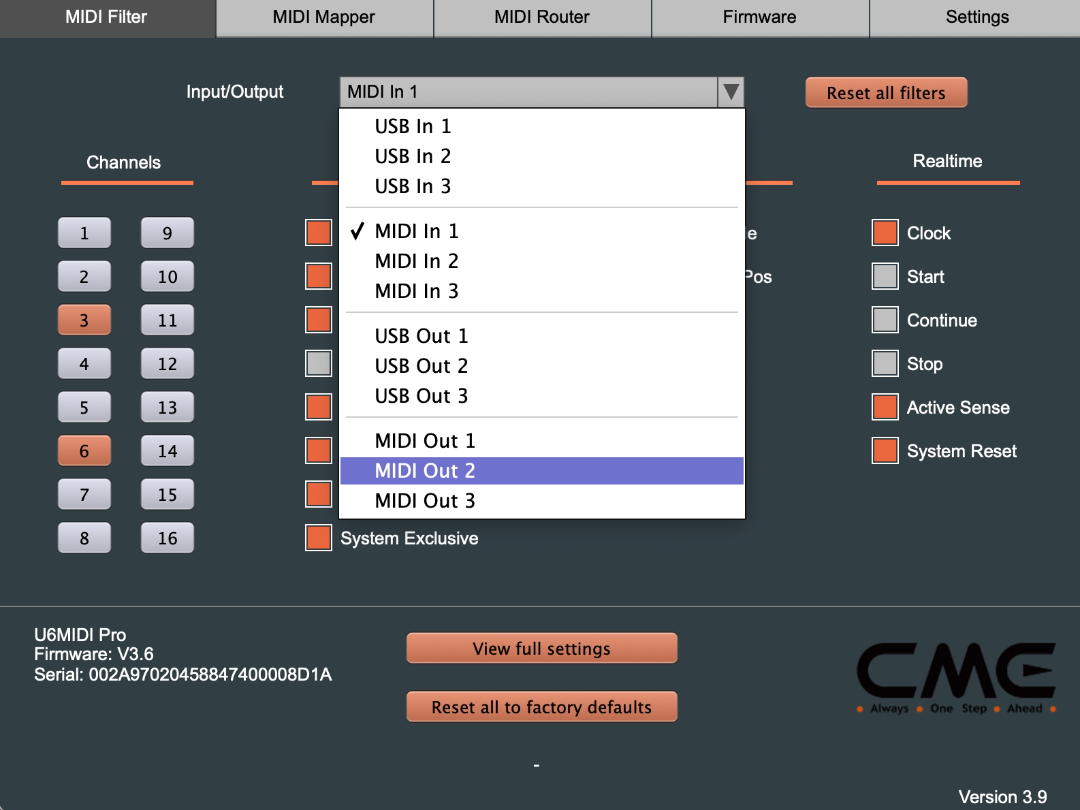

MIDI filter for U6MIDI pro and U2MIDI pro

CME UxMIDI Tools: MIDI Filter > Note on, Note off, PC, CC, Sysex, Key pressure, Pitch bend, Channel pressure

MIDI Router: Create MIDI Thru, Merge, and More

MIDI routing is about intelligently directing MIDI data from one source to another within your musical setup. It is at the core of any MIDI setup, and UxMIDI Tools simplifies the process, making it more intuitive and accessible.

Essentially, MIDI Thru and MIDI Merge are the most basic forms of MIDI routing within your setup. Let's dive a little deeper into how to configure your U6MIDI Pro as a thru, merge, split and even more advanced routing solution.

MIDI Thru

MIDI Thru is a fundamental part of MIDI setups, especially in more extensive music configurations. It essentially duplicates incoming MIDI data from one input and forwards it to one or more outputs.

Consider having a MIDI keyboard and wanting to play multiple synthesizers simultaneously. MIDI Thru comes to the rescue by splitting the MIDI signal from your keyboard, so that each synthesizer receives its own copy. This ensures all your instruments play together without any delay, which can be an issue when connecting them in a daisy-chain.

It's not just for keyboards; you can also use MIDI Thru to split signals or send timing information to different devices, making your complete musical setup operate smoothly. It's a practical tool to maintain synchronization and harmony across your setup.

Creating a MIDI Thru box with the U6MIDI Pro

  1. Launch UxMIDI Tools and connect your U6MIDI Pro
  2. Access the MIDI Routing section by clicking the tab on the top of the window
  3. Remove all default links between the in- and outputs by selecting the grey input button on the left (it will turn orange) and unchecking the output port on the right
  4. Link one single MIDI input port to all the MIDI output ports by selecting the grey input button on the left side and checking all output ports on the right side
  5. All settings are automatically stored on your U6MIDI Pro.

Note: The USB ports in the UxMIDI Tools software are virtual ports that run through a single USB-C port. The U6MIDI Pro is not a USB host device, and the USB port is only for connecting to operating systems, not for connecting MIDI controllers via USB.

midi thru with u6midi pro

CME UxMIDI Tools: MIDI Thru

MIDI Merge

While MIDI Thru is excellent for splitting signals, MIDI Merge performs the opposite function by consolidating MIDI data from different devices into a single stream. MIDI Merge simplifies your MIDI setup by uniting data from multiple sources, allowing for enhanced control over your musical equipment.

In both studio and live performance settings, it's common to use an array of MIDI controllers like keyboards, pad controllers, and footswitches. With a MIDI Merge configuration, you can combine the MIDI output from these controllers into a single stream.

This streamlined setup simplifies connections to your synthesizers, samplers, or DAW. This allows you to control various instruments and software with different controllers while maintaining a single MIDI input connection to for instance a sound module.

Creating a MIDI Merge box with the U6MIDI Pro

  1. Launch UxMIDI Tools and connect your U6MIDI Pro
  2. Access the MIDI Routing section by clicking the tab on the top of the window
  3. Remove all default links between the in- and outputs by selecting the grey input button (it will turn orange) on the left and unchecking the output port on the right
  4. Link one single MIDI output port to all the MIDI input ports by selecting the grey input button of each input port on the left side and checking the same output port on the right side
  5. All settings are automatically stored on your U6MIDI Pro.

Note: The USB ports in the UxMIDI Tools software are virtual ports that run through a single USB-C port. The U6MIDI Pro is not a USB host device, and the USB port is only for connecting to operating systems, not for connecting MIDI controllers via USB.

midi merge with u6midi pro

CME UxMIDI Tools: MIDI Merge

Customize your MIDI routing scenario with U6MIDI Pro

The UxMIDI Tools software opens up a world of possibilities beyond basic MIDI thru or merge functions. Its flexibility allows you to link inputs and outputs according to your unique preferences.

Note that the USB ports as shown in the UxMIDI Tools software are virtual ports that run through a single USB-C port. The U6MIDI Pro is not a USB host device, and the USB port is only for connecting to operating systems, not for connecting MIDI controllers via USB.

You can seamlessly integrate these three virtual MIDI ports via USB, or utilize it as a standalone 3-in-3-out MIDI router, leveraging the 5-pin DIN MIDI ports and using the USB port solely for external power.

customise midi routing

CME UxMIDI Tools: MIDI Router - Advanced configuration

Smart USB MIDI cabling with U2MIDI Pro

Imagine you have two MIDI instruments, Instrument 1 and Instrument 2, along with your computer running music software. Your instruments have standard 5-pin DIN MIDI ports and your computer has a USB A port.

With the UxMIDI Tools software you can change the standard routing of the U2MIDI Pro. You can now route MIDI messages from Instrument 1 to both Instrument 2 and your computer using the U2MIDI USB MIDI cable.

smart usb midi cable by cme

CME UxMIDI Tools: U2MIDI Pro - Smart USB MIDI cable

What truly sets this system apart is its advanced routing feature and the ability to filter incoming and outgoing MIDI messages, creating a remarkably dynamic MIDI ecosystem tailored to your precise requirements.

But wait, there's more!

With the latest software and firmware updates, you can now harness the power of MIDI mapping, adding an extra layer of customization to your MIDI setup.

MIDI Mapper: Transform your controls into expressive tools

MIDI mapping transforms your knobs, buttons, and sliders into expressive tools by assigning specific MIDI messages for controlling various parameters of your software or hardware instruments.

At its core, MIDI mapping empowers you to craft a MIDI ecosystem that responds precisely as you design it, streamlining control and enhancing the efficiency of your musical experience.

Imagine you have a complex live performance setup with various MIDI instruments. You have a MIDI keyboard controller, a pad controller, and a foot pedal controller, each serving different functions. With MIDI mapping, you can customize how each controller interacts with your gear.

For instance, you can map the keys on your MIDI keyboard to trigger different synthesizer presets and use the mod wheel to control filter cutoff. At the same time, you can map the pads on your pad controller to trigger drum samples and use the foot pedal to switch between guitar effect presets on a MIDI guitar processor.

By creating these specific mappings, you can seamlessly transition between different instrument and effect configurations during your performance. This level of customization allows you to focus on your music without getting caught up in manually adjusting settings on each device.

Getting started with the UxMIDI Mapper

  1. Firmware Update: Ensure that your CME USB MIDI hardware device's firmware is updated to version 3.6 or higher.
  2. Launch UxMIDI Tools: Start the UxMIDI Tools software on your computer, version 3.8 or higher
  3. Connect CME's USB MIDI hardware device: Connect your CME USB MIDI hardware device to your computer via USB and confirm that it is selected in the UxMIDI Tools software.
midi mapper for u6midi pro and u2 midi pro

CME UxMIDI Tools: MIDI Mapper - Firmware + Software Update

Understanding MIDI Mapper

The MIDI Mapper function allows you to remap the input data of your selected device, enabling customized output based on rules you define.

  1. Select your mapper: You have up to 16 independent mappings that you can freely configure to create complex mapping scenarios (Image 1).
  2. Input Selection: Select the input port from which you want to map data. Once the input source is configured and "disabled" is no longer checked, the corresponding mapper number will display a green activation indicator (Image 2).
  3. Mapping Configuration: In the Config area, you set the source MIDI data (input) and define the new data (output) after mapping.
MIDI Mapping per channel

Image 1: CME UxMIDI Tools: MIDI Mappers

Image 2: CME UxMIDI Tools: MIDI Mapper Input selection

Understanding the Config section

  1. Source MIDI Messages: In the left Message area, select the source MIDI message type to be mapped at the top and the target MIDI message type at the bottom via the dropdown menus.
    Note: See table 1 below
  2. Source MIDI Channel: Select the source MIDI channel and the destination MIDI channel, ranging from 1 to 16.
  3. Min/Max Values: Define the minimum and maximum channel value range. They can be set to the same value for an exact response to a specific value.
  4. Value 1 & Value 2: Depending on the selected [Message] type, these values can be Note #, Control #, Patch #, Bend LSB, Pressure, Velocity, Amount, etc., ranging from 0 to 127.
    Note: See table 2 below
  5. Auto-save: All settings are automatically stored on your CME USB MIDI hardware device.
    Note: All conditions must be met to trigger the mapper.
MIDI Mapping

CME UxMIDI Tools: MIDI Mapper configuration

If the conditions of your mapper are not met, the original message is used instead. For example, if you set Velocity from 10 to 100 in the trigger condition and velocity is received at 5, the original message is not remapped and used in its original form.

In other words, all conditions must be met to trigger the mapper.

In the above image Value 1 is Note# and Value 2 is Velocity, corresponding with the source message Note On as selected in the message section.

Please note the tables below for all possible data options.


Table 1: Source MIDI messages


Note On

Note On message

Note Off

Note Off message

Ctrl Change

Control Change message

Prog Change

Program Change message

Pitch Bend

Pitch Bend message

Chann Aftertouch

Mono Aftertouch message

Key Aftertouch

Polyphonic Aftertouch message

Notes Transpose

Notes Transpose message




Table 2: Value 1 and 2


Message

Channel

Value 1

Value 2

Note On

1-16

Note #

Velocity

Note Off

1-16

Note #

Velocity

Ctrl Change

1-16

Control #

Amount

Prog Change

1-16

Patch #

Not used

Pitch Bend

1-16

Bend LSB

Bend MSB

Chann Aftertouch

1-16

Pressure

Not used

Key Aftertouch

1-16

Note #

Pressure

Notes Transpose

1-16

Note > Transpose

Velocity


View Full Settings

The View full settings button opens the general settings window, allowing you to see filter settings, mapping settings, and routing settings for each input port of the connected CME USB MIDI hardware device in one convenient overview.

CME advanced MIDI interfaces

CME UxMIDI Tools: Overview

Conclusion

Whether you're a professional musician or a budding producer, the versatile UxMIDI Tools software empowers you to harness the full potential of your MIDI interfaces.

From MIDI filtering to intricate routing and expressive mapping, UxMIDI Tools opens up endless possibilities for creative control.

So, if you're searching for an exceptional MIDI solution that offers unparalleled flexibility and performance, CME's UxMIDI Tools combined with the U2MIDI Pro and U6MIDI Pro (or future CME USB MIDI hardware devices) are your ideal companions on your musical journey.

Unleash your MIDI potential against entry-level pricing. Get ready to elevate your music game to a whole new level.
